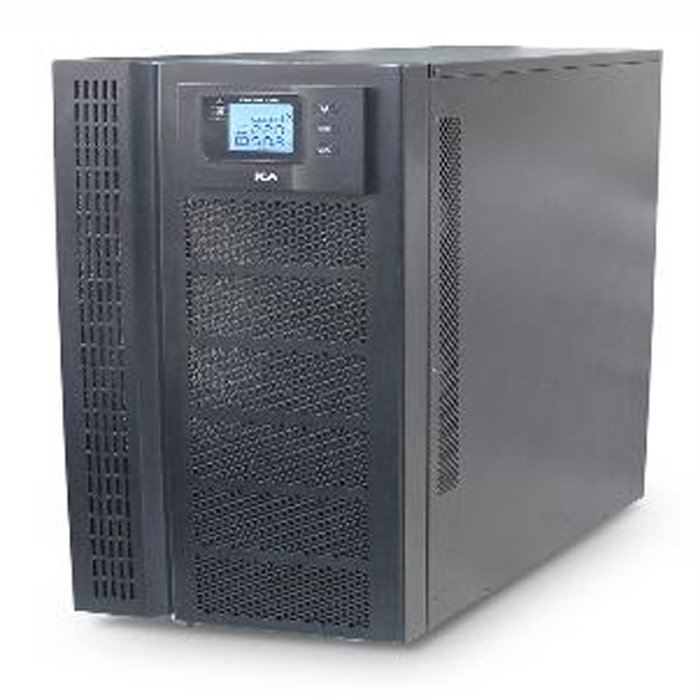

UPS ICA SE1512C31 (15000VA/13500W) (TKDN)

UPS ICA SE1512C31 (15000VA/13500W) (TKDN)


Model : UPS SE1512C31
Capacity : 15000 VA / 13500 W
AC Input Voltage : 208 – 478 V (3 Phase)
AC Input Frequency : 45 – 65 Hz
AC Input Protection : 100 A
DC Input Voltage : ±120 V
DC Input Internal Battery : 2 x 20 x 12 V, 7 Ah
DC Input Protection : MCB
Charger Topology : SWITCHING REGULATION
Charger Floating Voltage : ±136 V
Inverter Output Waveform : SINEWAVE
Inverter Output Distorsion : <2% THD
Inverter Output Topology : Online Double Conversion
Inverter Output Voltage : 220 ± 1% V
Inverter Output Frequency : 50 ± 1 % Hz
Inverter Output Efficiency : ? 90 %
Transfer Time When AC Input Loss : 0 ms
Static Transfer Switch : 0 ms
Back Up Time : 10 min
Overload : Load ?110%: last 60min, ?125%: last 10min, ?150%: last 1min, ?150% change to bypass
Communication : USB, RS232, RS485, Parallel port, REPO port, Coupler dry contact, Intelligent slot, SNMP card (optional), Relay card (optional)
Operation Temperature : 0 – 40°C
Standards : IEC/EN62040-1, IEC/EN60950-1, IEC62040-3, IEC/EN62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8
Dimension(DxWxH) : 910 x 350 x 875 mm
Weight Netto : 162 Kg
Weight Gross : 182 Kg
