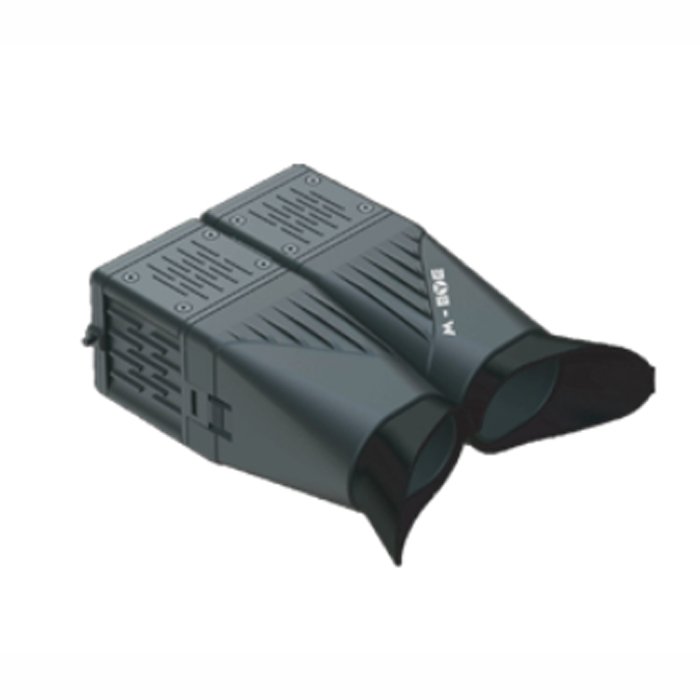

M-EYE

M-EYE

*Simultaneous Capture : Dual IRIS Capture *IRIS Diameter : > 210 Pixel *Spatial Resolution : > 60 % @ 4.0 LP/mm *Pixel Resolution : > 20 Pixel/mm *Image Margins : Left & Right >= 0.5x IRIS Diameter, Top & Bottom >= 0.25x IRIS Diameter *Pixel Depth : 8 Bits/Pixel (256 Gray Level) *Imaging Wavelength : 700 - 900 nm *Frame Rate : >=10 Frames/Sec *Scan Type : Progressive *Sensor SNR : > 36 dB *Capture Mode : Auto Capture with Built-in Quality Check *Illumination : Near Infra Red (NIR) *Capture Distance : > 100mm from the Front of Camera mirror *Capture Volume (WxHxD) : 30 x 22.5 x15 mm *Exposure Time : < 33ms *Interface : USB2.0 High Speed (USB-IF Certi ed) *Operating Voltage : 5V +/- 5% *Current Consumption : Operating :- < 375 mA (Max) , Stand By :- < 160 mA (Max) *Operating Temperature : 0 to 50 °C *Operating Humidity : 10-90% RH, Non-Condensing *ESD Protection : +/-4kV (Contact Discharge), +/-8kV (Air Discharge) *Device Dimension : 185 x 145 x 62 mm *Device Weight : 0.41Kg *Biometric Data Interchange Format : ISO 19794-6 for IRIS Image, *ISO 29794-6 for image quality *EMI / EMC Compliance : CE & FCC Part 15B class B *Environmental, Health and Safety : ROHS *Safety : Exempt Group per IEC 62471:2006-07, IS13252 (Part 1) *Ingress Protection Rating : IP65 *Operating System : Windows x86 and x64, Linux
